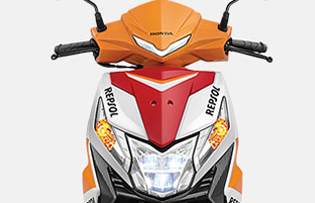

LED Headlamp & Position Lamp
For those swanky riders of the dark, the ultra stylish LED gives you a clear view of the road while the signature LED position lamp delivers a dashing look to the ride and adds a dash of style on the rider.

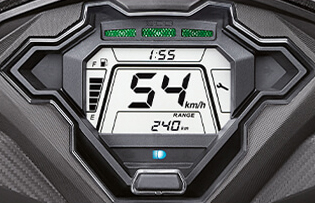

Fully Digital Meter*
A swanky digital meter, it shows more than just the speed at which you are moving. Go from 0 to a fully beating heart at one look.
Racing Inspired Graphics
If thrill had a design language then this is it. The Repsol Honda Edition of Dio is designed to inspire your inner racer. Flashy and fierce it’s time to set the streets on fire.

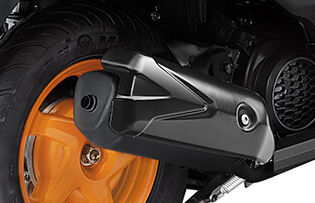

Stylish Muffler Protector
The stylish muffler in Dio makes the silencer look really cool while protecting the feet from feeling the heat.

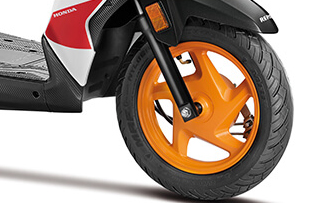

Repsol Honda Colour Orange Alloy Wheels
The Repsol Honda colour inspired alloy wheel brings out the attitude of not just a rider but a racer as well.
Split Grab Rail
Better grip meets gripping design. These cool and edgy looking split grab rails in the new Dio Repsol Honda Edition makes it look like a complete stunner.

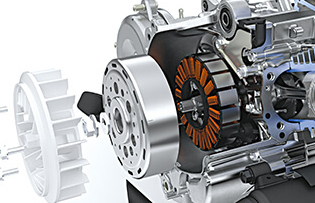

Silent Start with ACG
Honda Dio is equipped with ACG starter, which starts the engine silently by removing the gear meshing noise. It also reduces maintenance cost.
The ACG starter in your Honda DIO removes gear meshing for a start as silent as a wild cat on the hunt. It also helps to reduce engine maintenance.

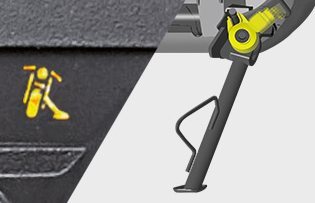

Side Stand Engine Cut Off*
A revolutionary system that cuts off the engine when the side stand is on engage mode.
Programmed Fuel Injection
Sensor based PGM-FI system constantly adjusts the air/fuel mixture, as per the ride mode and conditions allowing complete combustion. This results in consistent performance, better fuel efficiency, all weather start and lesser emissions.
These indicators are your ride’s way of saying ‘give me way’. Speak on the go without saying a word.

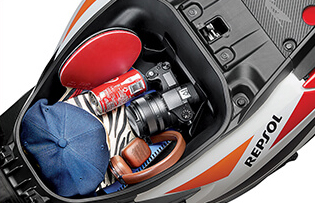

Lift your seat upright and you have a place to perfectly store your stuff. Be it your headphone, notebook or DSLR, put it in and ride wherever.

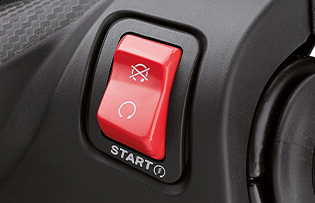

Engine Start/Stop Switch
Switch to the better way of riding. Start and stop the engine with just a click.

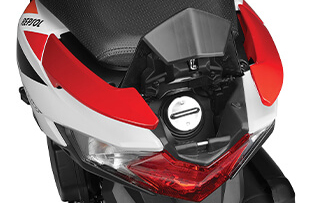

External Fuel Lid
No more hassles of lifting your seat. Take a stand for refuelling, without having to leave your seat.

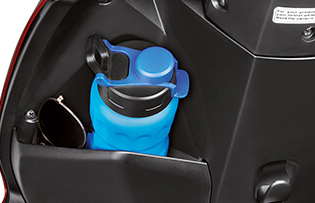

Store your essentials, be it your sipper or your glares. Oh goodness gracious, this front pocket is twice as spacious.

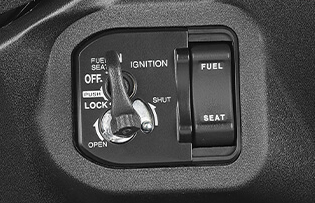

Multi Function Switch
One compact console insures convenience of operating ignition, handle lock, seat lock & external fuel lid.

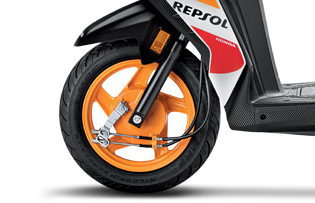

Bigger Front Wheel with Telescopic Suspension
Honda Dio is equipped with a Telescopic Suspension for less shock and more awe while riding. 90/90-12 tubeless tyres ensures a stable and comfortable ride even in rough and uneven terrains.
- Body Dimensions
- Tyres & Brakes
- Frame & Suspension
- Length 1808 mm
- Width 723 mm
- Height 1150 mm
- Wheel Base 1260 mm
- Ground Clearance 160 mm
- Seat Length 650 mm
- Kerb Weight 103 kg
- Fuel Tank Capacity 5.3 L
- Type Fan Cooled, 4 Stroke, SI Engine
- Displacement 109.51cc
- Max Net Power 5.71 kW @ 8000 rpm
- Max Net Torque 9 N-m @ 4750 rpm
- Bore 47.0 mm
- Stroke 63.1 mm
- Fuel System PGM-FI
- Compression Ratio 10.0+0.2
- Air Filter Type Viscous Paper Filter
- Starting Method Kick/Self
- Clutch Type Automatic
Tyres & Brakes
- Tyre Size (Front) 90/90-12 54J
- Tyre Size (Rear) 90/100-10 53J
- Tyre Type (Front) Tubeless
- Tyre Type (Rear) Tubeless
- Brake Type & Size (Front) Drum 130 mm
- Brake Type & Size (Rear) Drum 130 mm
Frame & Suspension
- Frame Type Under Bone
- Front Telescopic Suspension
- Rear 3-Step Adjustable, Spring Loaded Hydraulic
- Battery 3.0 Ah
- Head Lamp LED
DIO Repsol Honda Edition
